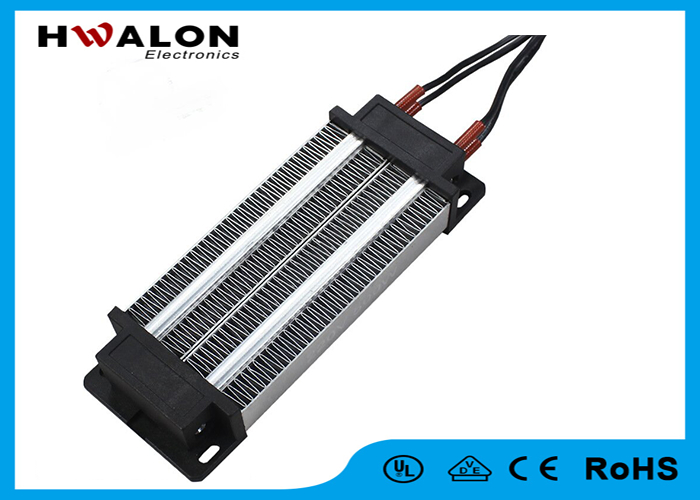

72V 500w 140X50.5x26mm ptc ceramic air fan heater heating element for air conditioning/Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier/PTC Heater Heating Element systems
Product Information:
PTC Heater Heating Element
1. Rated Voltage: 72V
2. Rated Power: 500W

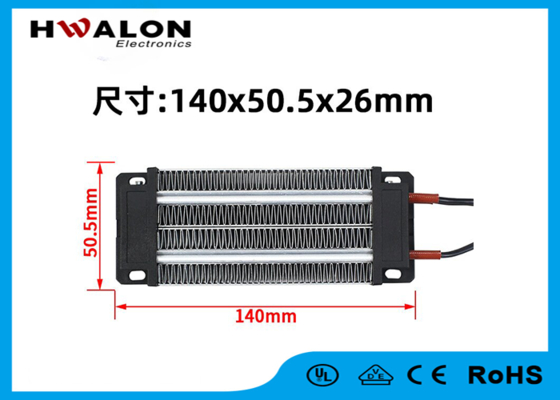

3. Dimension: 140*50.5*26mm
|
Product Name
|
PTC Air Heater(PTC Heater Heating Element)
|
|
Heat Material
|
PTC Thermistor
|
|
Heat Methods
|
Heat Radiation by Air Flow
|
|
Lead Wire
|
Silicone High Temperature Line
|
|
the Length of Lead Wires
|
200mm
|
|
the Length of Bare Wires
|
10mm
|
|
Surface Insulate
|
Yes
|
|
Application
|
Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier/PTC Heater Heating Element
|
Instruction manual:
1, The power line does not distinguish between positive and negative, you can freely link power 110V.
2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, Can be placed under a wet environment, but can not be placed in water.
4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6, Both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9, Life: about: 3--5 years.
Packing & Delivery
Packing Details : Packing, 50pcs/carton
Delivery Details : 15-20 days after order
FAQ:
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance.
